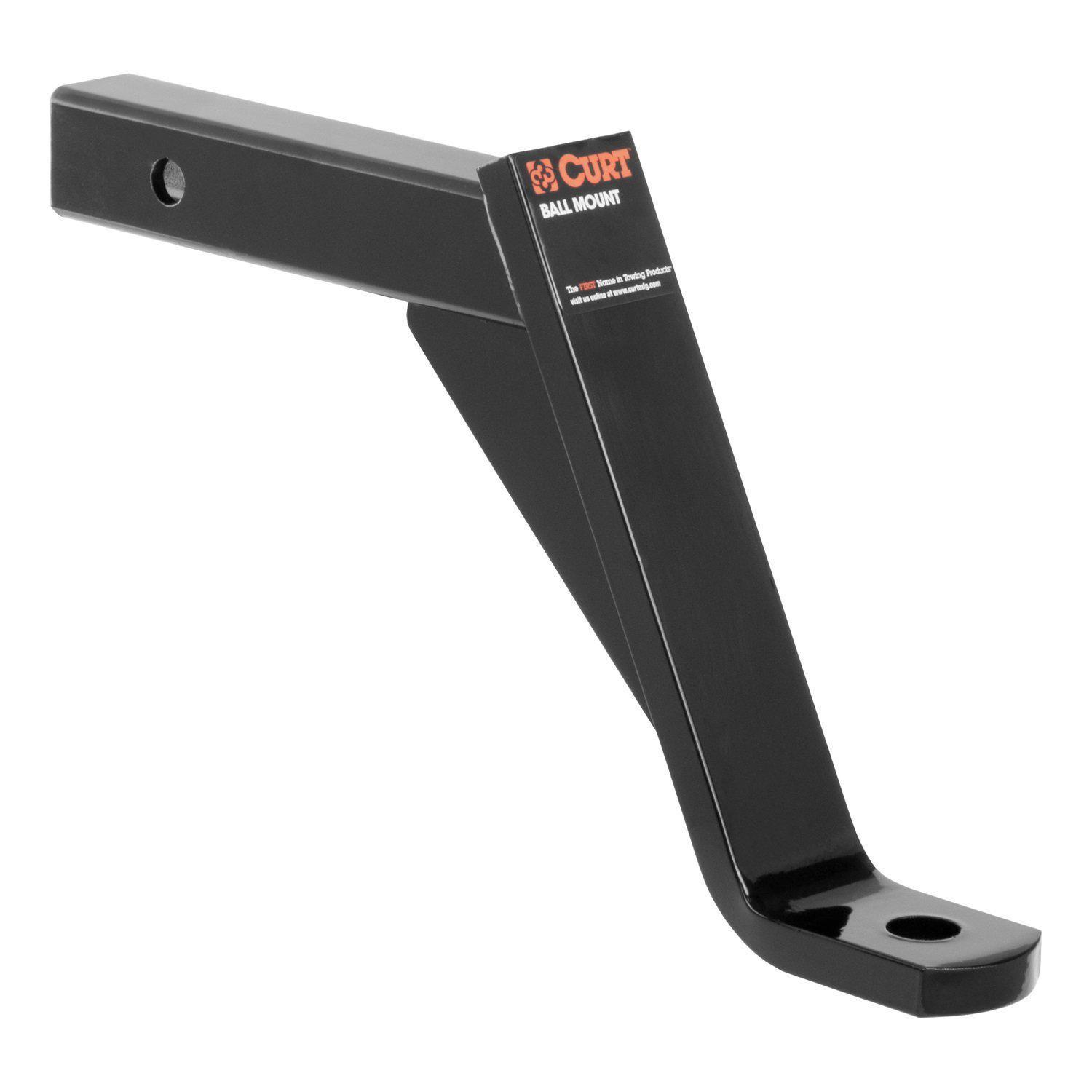

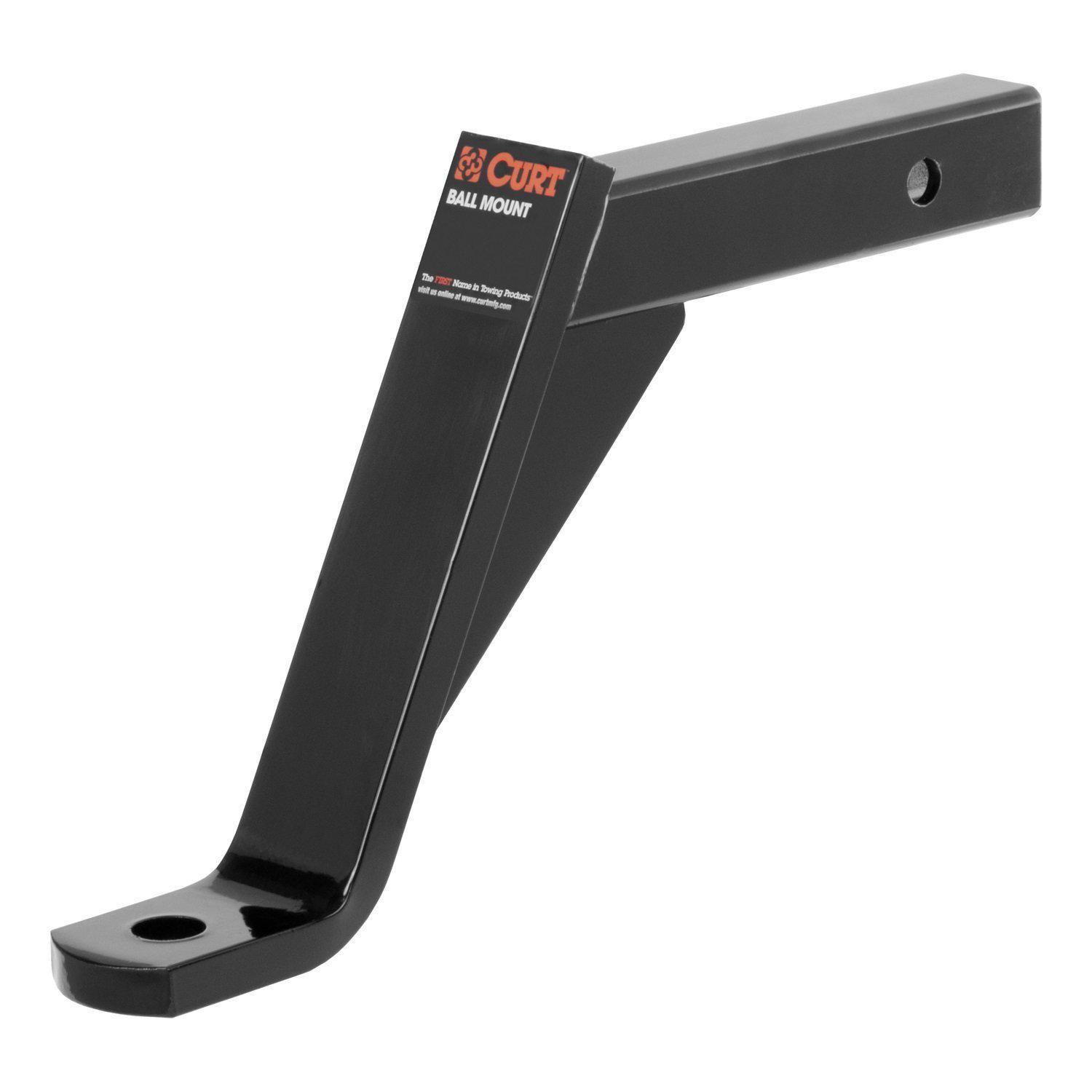

Curt Hitch Ball Mount, Standard-Duty

Regular price $22.49 $0.00

 This is a class 3, or standard-duty, hitch ball mount. CURT class 3, or standard-duty, ball mounts are a step up from classes 1 and 2. They feature a 2" x 2" shank and have a higher weight capacity for towing heavy-duty trailers, including utility trailers, boat trailers, campers, single-horse livestock trailers and most recreational vehicle trailers. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles. Hollow shank weighs less and can be used with an anti-rattle kit. CNC-formed, robotically welded and mechanically descaled for a perfect fit.

Details/Specs:

  • Available options:
    • 5K / 10" Drop/8" Rise
      • GTWR / VTW (Drop): 5,000 lbs/500 lbs
      • GTWR / VTW (Rise): 3,500 lbs/350 lbs
      • Length: 13"
    • 7.5K / 4" Rise/6" Drop
      • GTWR / VTW (Drop): 7,500 lbs/750 lbs
      • GTWR / VTW (Rise): 6,000 lbs/600 lbs
      • Length: 9 1/4"
    • 7.5K / 2" Drop/3/4" Rise
      • GTWR / VTW: 7,500 lbs/750 lbs
      • Length: 8 1/4"
  • Fits 2" x 2" receiver
  • Ball Shank Hole Diameter: 1"
  • Finish: Gloss Black Powder Coat
  • Limited lifetime warranty
  • Made in USA

Manufacturer: Curt
Part No: 45110 (5K / 10" Drop/8" Rise), 45070 (7.5K / 4" Rise/6" Drop), 45030 (7.5K / 2" Drop/3/4" Rise)
